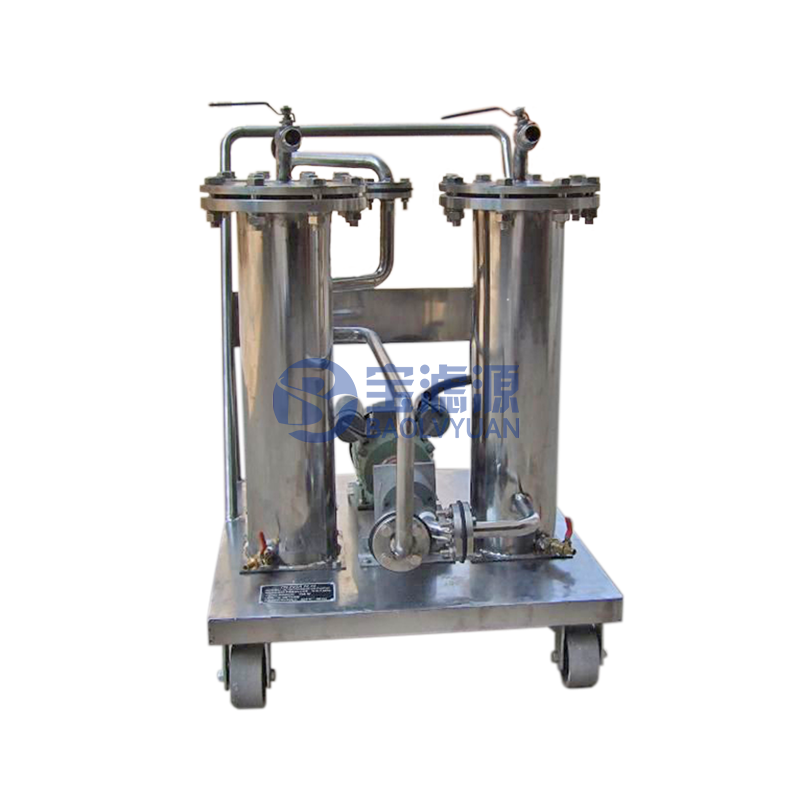

Hand-push oil filter (stainless steel)

Summary：Filtration of impurities in liquid oil during transportation. Bypass filtering of the oil system at work.

　　Abstract:

Product Number: JL Series

Content:

　　Product use:

Filtration of impurities in liquid oil during transportation.

Bypass filtering of the oil system at work.

Circulating filtration of the hydraulic lubrication system before it is put into operation.

The oil of the hydraulic lubrication system is not pumped by the pump filter of the equipment itself.

　　Product features:

Small volume, light weight, easy to move.

Low noise high pressure oil pump.

With overpressure protection, the filter element is durable.

Multi-stage filtration, step by step precision.

　　User-selectable configuration:

Motor, electrical oil pump can be selected according to the need of imported brands.

Flowmeter can be installed according to user requirements.

Explosion-proof products can be customized according to the field environment.

Technical parameters:

Project	Parameter Name		Unit	JL-10	JL-20	JL-30	JL-50		JL-60	JL-100	JL-150	JL-200	JL-300
Technical indicators of equipment	Flow		L/min	10	20	30	50		60	100	150	200	300
	Power			380V/50HZ (or according to user needs)
	Cleanliness			≤ NAS8 level NAS1638 standard (customized according to customer needs)
	Filtration accuracy		um	1-10 (according to customer needs)
	Motor power		KW	1.5	1.5	1.5	1.5	1.5		1.5	1.5	1.5	1.5
	Inlet and outlet pipe diameter		mm	32	32	32	32	32		40	40	40	40
	Equipment weight		kg	140	140	140	150	150		150	150	150	150
	Overall dimension	Long	mm	600	600	600	600	600		650	650	650	650
		Wide	mm	700	700	700	700	700		700	700	700	700
		High	mm	850	850	850	850	850		850	850	850	850
