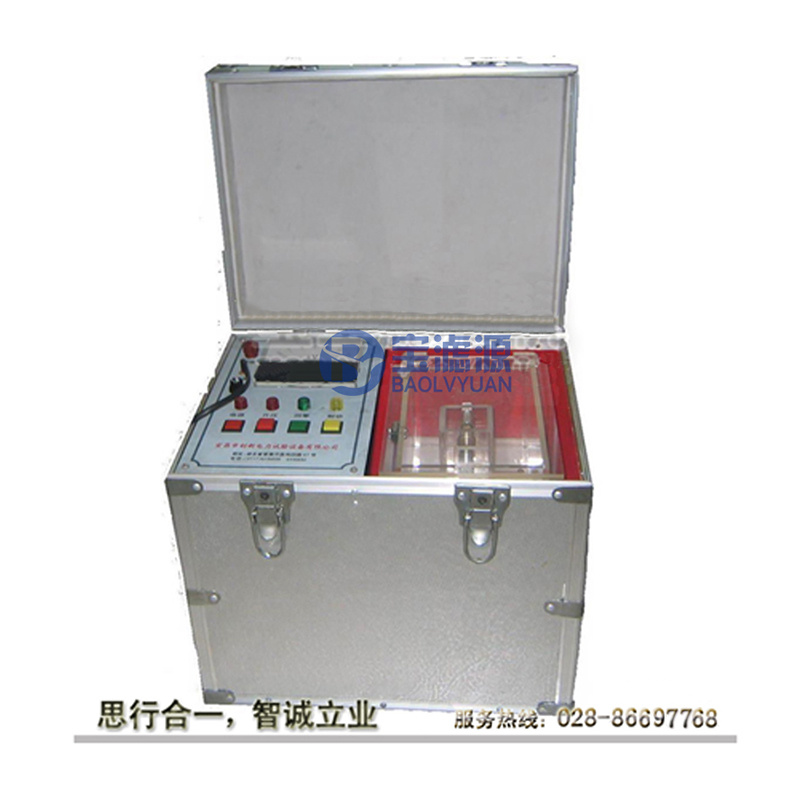

HYYJ-501 breakdown voltage tester

Summary：The HYYJ-501 breakdown voltage tester is used to test the dielectric strength of insulating oil such as transformer switches. It is generally used after oil filtration to achieve the purpose of detecting the effect of oil filtration.

028-86697768

Product Inquiry

Detailed Description

1. product use:

The HYYJ-501 breakdown voltage tester is used to test the dielectric strength of insulating oil such as transformer switches. It is generally used after oil filtration to achieve the purpose of detecting the effect of oil filtration.

2. product performance indicators:

1. Power supply: AC220V ± 10%,50Hz

2. Output voltage: 80 kV,100 kV(100kV to be customized)

3. Capacity: 1.6 kVA, 2.0 kVA

4. Boost speed: about 2 kV/S

5. Voltage detection accuracy: 3%

6. Breakdown sensitivity:<2 kV

7. Waveform distortion: ≤ 3%

8. Breakdown reaction time: ≤ 10ms

9. Working environment: temperature: 0 ℃ ~ 40 ℃, humidity: maximum relative humidity 85%

10. Storage environment: temperature:-20 ℃ ~ 60 ℃, humidity: maximum relative humidity 75%

11. working altitude:<1500m (if it exceeds 1500m, it can be specially designed)

Technical characteristics of 3. products;

1. Simple operation and high degree of automation (just press one key);

2. Menu management, simple and clear input parameters;

3.99 sets of oil sample test data can be stored for convenient reading and printing in the future. The test data can be stored for 100 years under the condition of turning off the power supply;

4, the system clock can continue to run in the power off state; (the internal time of this system is for reference, not for standard timing)

5. Strong anti-interference ability and high detection accuracy;

6, small size, light weight, easy to field operations.
